Latest composite prodigy/finished/with arrows
« on: June 09, 2017, 08:09:17 am »
Another hickory/horn/sinew.Not yet near finished but on it's way.56.5" NTN.Right now 52#'s @ 28".Pics of profile before tiller and after tiller.Had to remove 65 to 70 grains of horn sanding to get current shape & poundage.Started with 14" TTT reflex.Lost 3" overall to 11" TTT after tillering resting over night.A person could take off 3/4" to get to NTN reflex measurement.The actual real measurement.Immediately after unstringing being braced 4 hours or so setting with 9" reflex.Mass weight 17.90 ounces but don't have handle carved in yet.I'm guessing lower 17 to upper 16 ounces in the end.

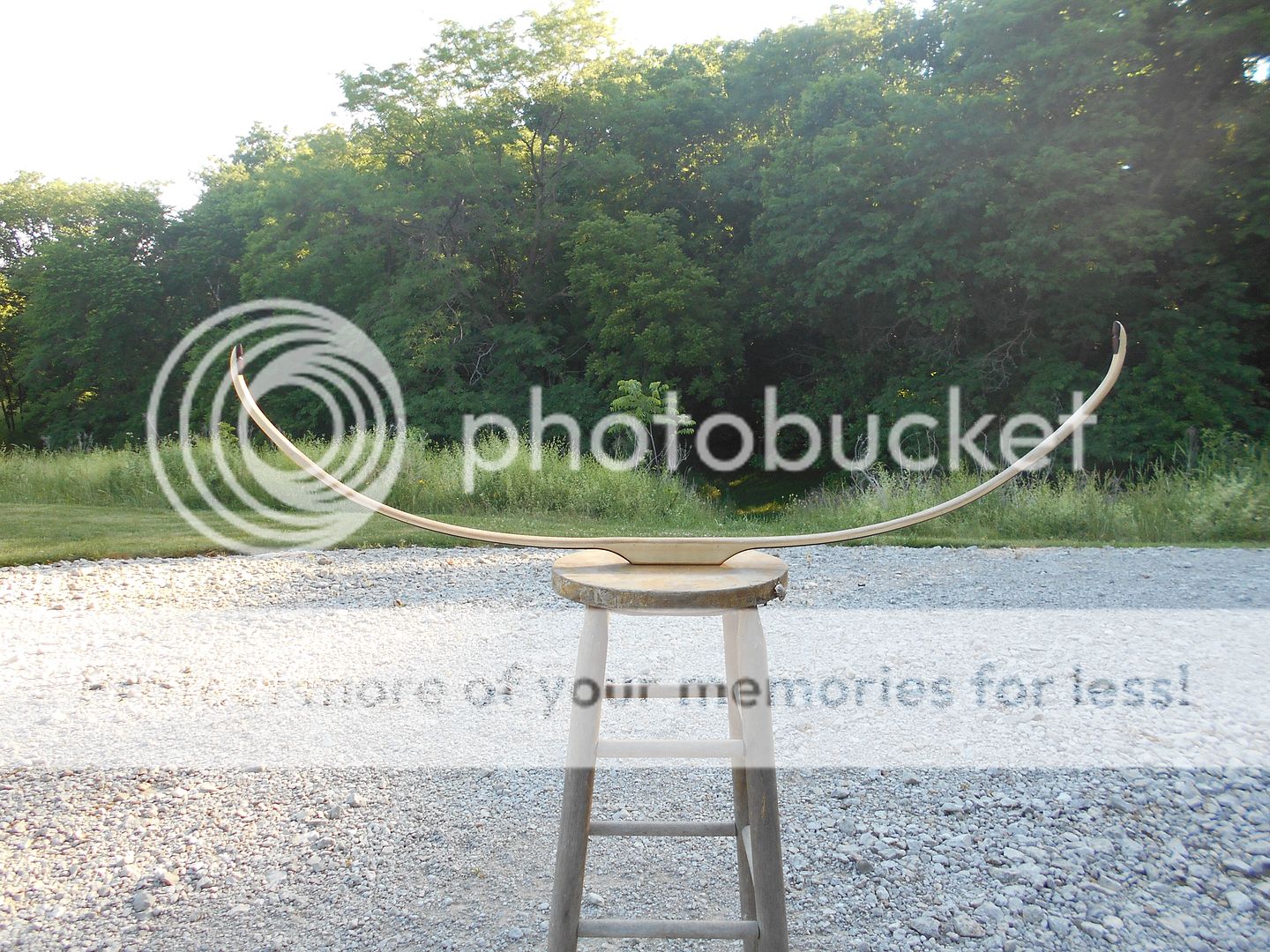

Before tillering

After tillering resting overnight

Brace of 6.5 to 7 inches to the back.I guess this one can be called a true recurve as the string does actually rest on the belly a couple of inches.

Full draw

I'll dress her up in the next few of weeks.Take more pics of it then.
Here are pictures of the preliminary process:
The core


Glue up of horn.Using smooth on I can get away with a tight inner tube wrapping.Both core and horn are pretappered before glue up.

Off form



Around 1200 grains of sinew ready

Reverse bracing while drying.Sinew was put on 3 different stages.Reflex increased a bit each time


Final cured look then to tillering and look as in pictures at beginning of the posting of the bow

« Last Edit: October 21, 2017, 11:35:21 am by BowEd »
